Get the accuracy and precision you need for trusted results
From small to large capacity and throughput, VERITY® HPLC Systems provide the answer for semi-preparative and preparative purifications. All system configurations accommodate novel injection and fraction collection capabilities within a single platform, with multiple detection options. The entire final system configuration is controlled by TRILUTION® LC software.
Purpose built for
semi – preparative to preparative purification
semi – preparative to preparative purification
Ideal for purification on 10 to 50 mm ID columns with large dynamic flow range up to 150 mL/min and pressure up to 420 bar (6090 psi).
Modular components provide a multitude of options
Using a GX Liquid Handler as a starting point, build your ideal system by choosing from several pump, detection, and other options.
Easy-to-use software control
Your entire VERITY HPLC System is controlled by the TRILUTION LC Software, allowing you to focus on the science rather than the software.
DOWNLOAD BROCHURE FOR MORE INFORMATION
VERITY purification systems
Features
Intelligent liquid handling design
VERITY HPLC Systems include a GX Liquid Handler, which features separated fluid paths between injection and fraction collection to prevent contamination for small volumes.
Flexible sample injection options
With its syringeless, solvent delivery system, VERITY 271 and 281 HPLC Systems accommodates injection loop volumes of 2 µL to 25 mL and sample mass of up to 15 grams per injection.
Pumping solutions
VERITY HPLC Systems can be configured with several pumping solutions. The VERITY® 3240 High Pressure Binary Gradient Pump is designed for semi-preparative to preparative purification. Thanks to its large dynamic flow range of up to 150 mL/min and pressure up to 420 bar (6090 psi); it provides an economical and compact pumping solution for preparative purification on 10 to 50-mm ID columns.
Configuration flexibility
With several valve options available, virtually any number of single- or multiple-column schemes can be accommodated.
Detection options
VERITY HPLC Systems can be configured with one or more detection options, including the VERITY® 1741 UV/VIS, the VERITY® 1601 evaporative light scattering (ELS), VERITY® 1920 Mass Spectrometer, as well as conductivity and pH monitoring with the VERITY® 1810.
Systems

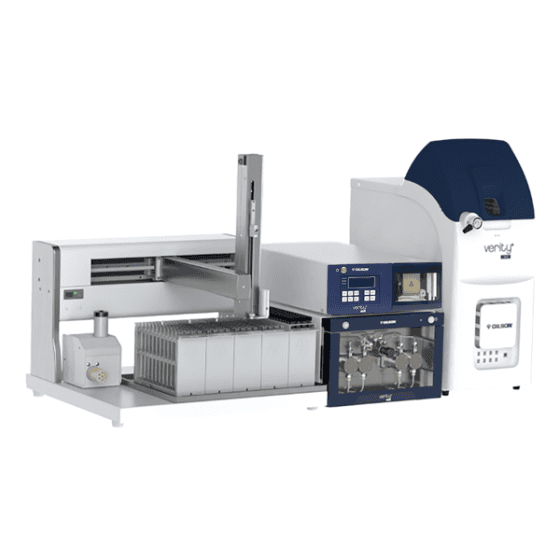

VERITY 271 HPLC System
Mid-size and throughput HPLC system
With mid-size capacity and throughput, VERITY 271 HPLC Systems provide hundreds of configurations for semi-preparative and preparative purifications and a bench-saving footprint.

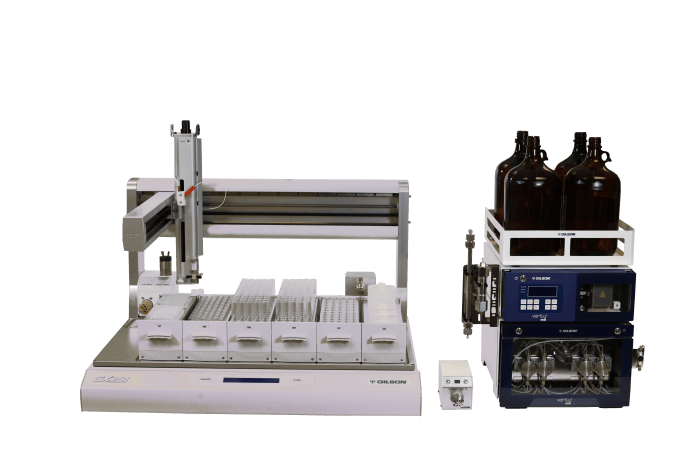

VERITY281 HPLC System
Large capacity and throughput HPLC system
When large capacity and throughput are needed, VERITY 281 HPLC Systems provide the answer for semi-preparative and preparative purifications with numerous injection, fraction collection and re-injection capabilities.
Specifications
| VERITY 271 HPLC | VERITY 281 HPLC | |
|---|---|---|
| Bed sample capacity | 5 racks | 6 racks |
| Semi-preparative to Preparative Purification (10 to 50 mm ID column) | 0.3 - 30 mL/min (322-H2) 150 mL/min (3240) | |
| Maximum flow rate | 150 mL/min (3240) | |
| Maximum pressure | 420 bar (6090 psi) | |
| Optional GX Solvent System (syringeless) | Yes | Yes |
